• Real time visualization and monitoring of plastic injection and blow molding plant performance.

• Industry 4.0 technology: one time investment, no monthly fees.

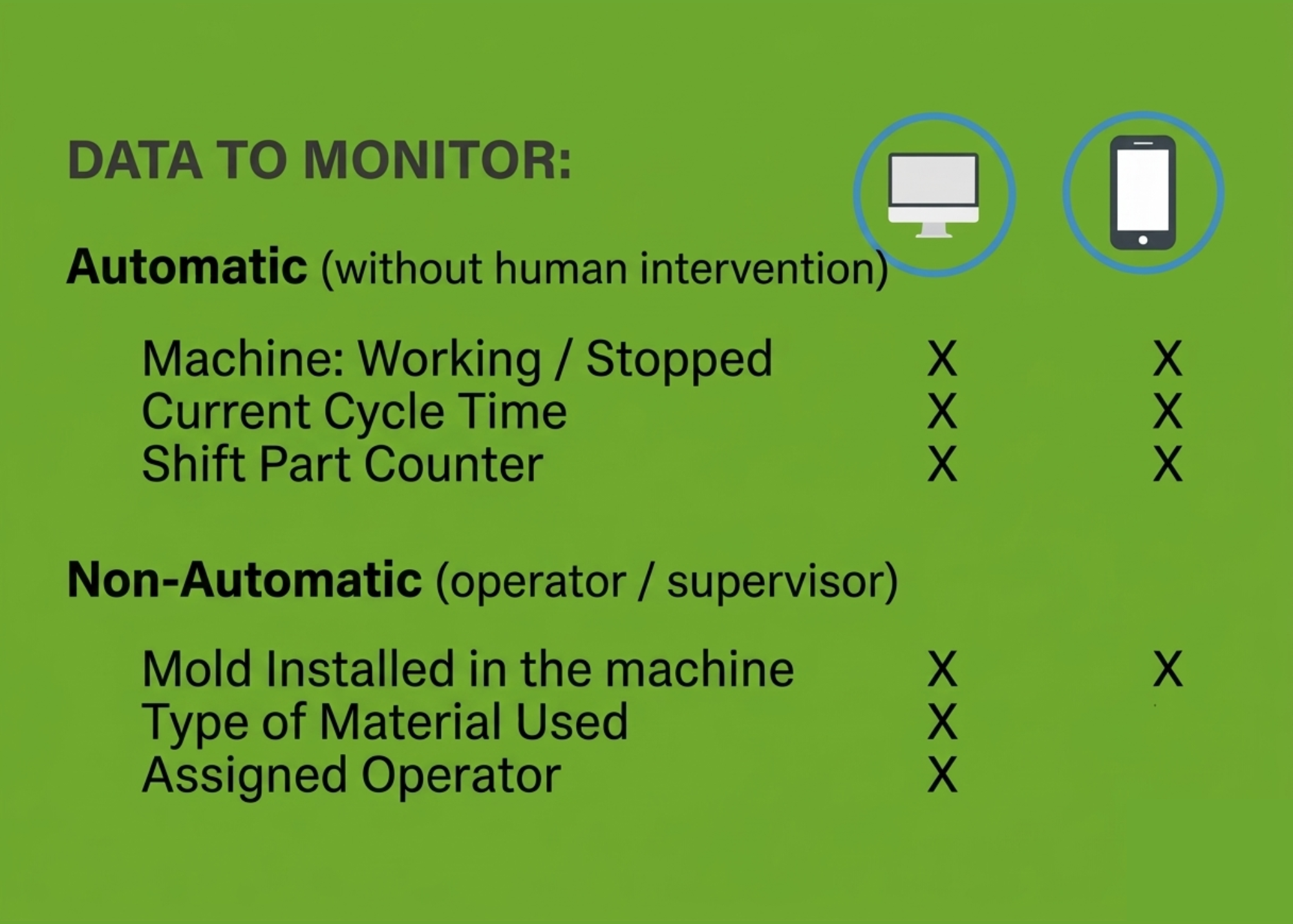

Monitoring Types:

- Local monitoring: From the SIMOR server (Industrial PC) or any PC on the same ethernet network.
- Remote monitoring: Via PC (internet explorer or google chrome), tablets or smartphones (Android/Safari).
- Email alerts: Immediate notifications for machine start/stop or as enabled by the administrator.

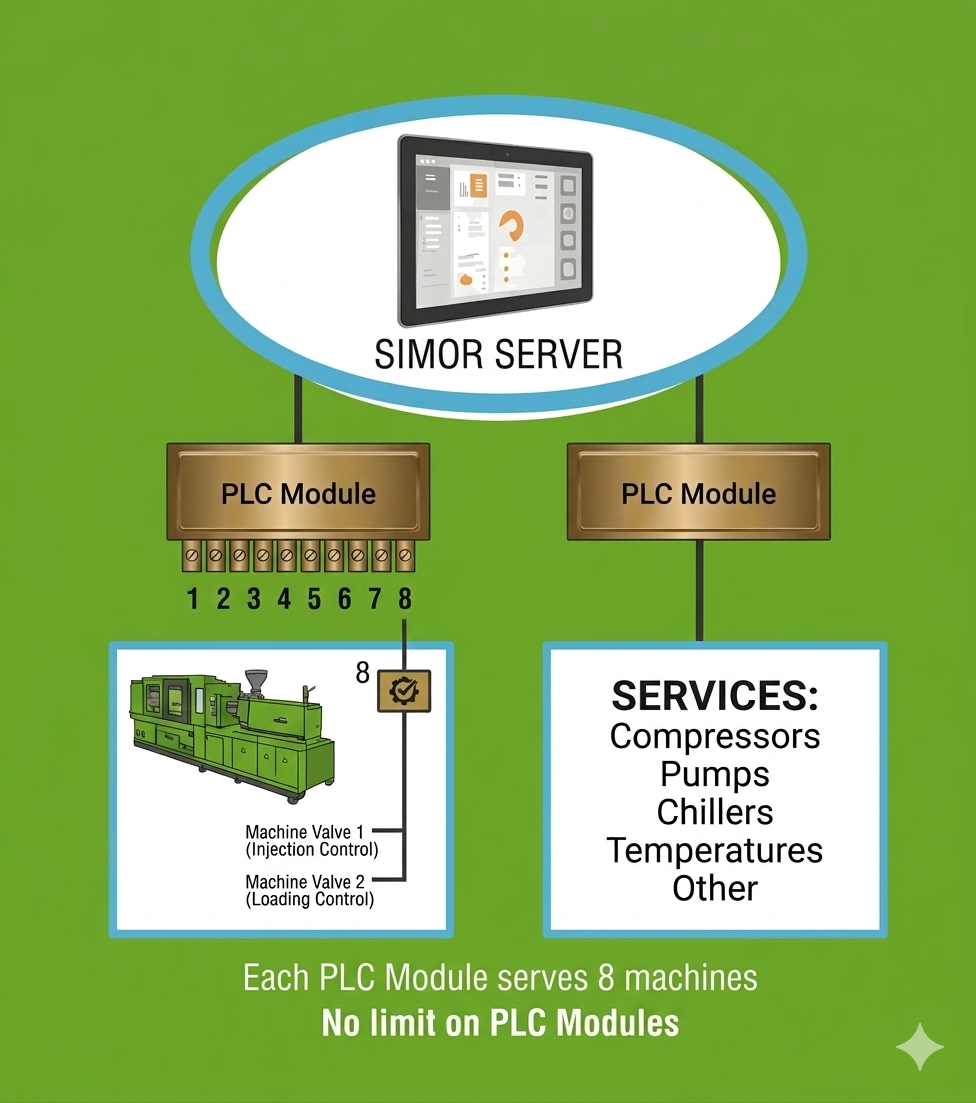

Hardware del sistema:
- SIMOR server: Industrial PC with touchscreen.
-Machine PLC Module: 1 modules per 8 machines. Compatible with injection, blow molding, and other equipment.
- Service PLC Module: 1 module for 16 devices.
- Ethernet connection between server and modules.

Instalación del sistema en máquina:

-Non invasive installation on the machine´s original control system.

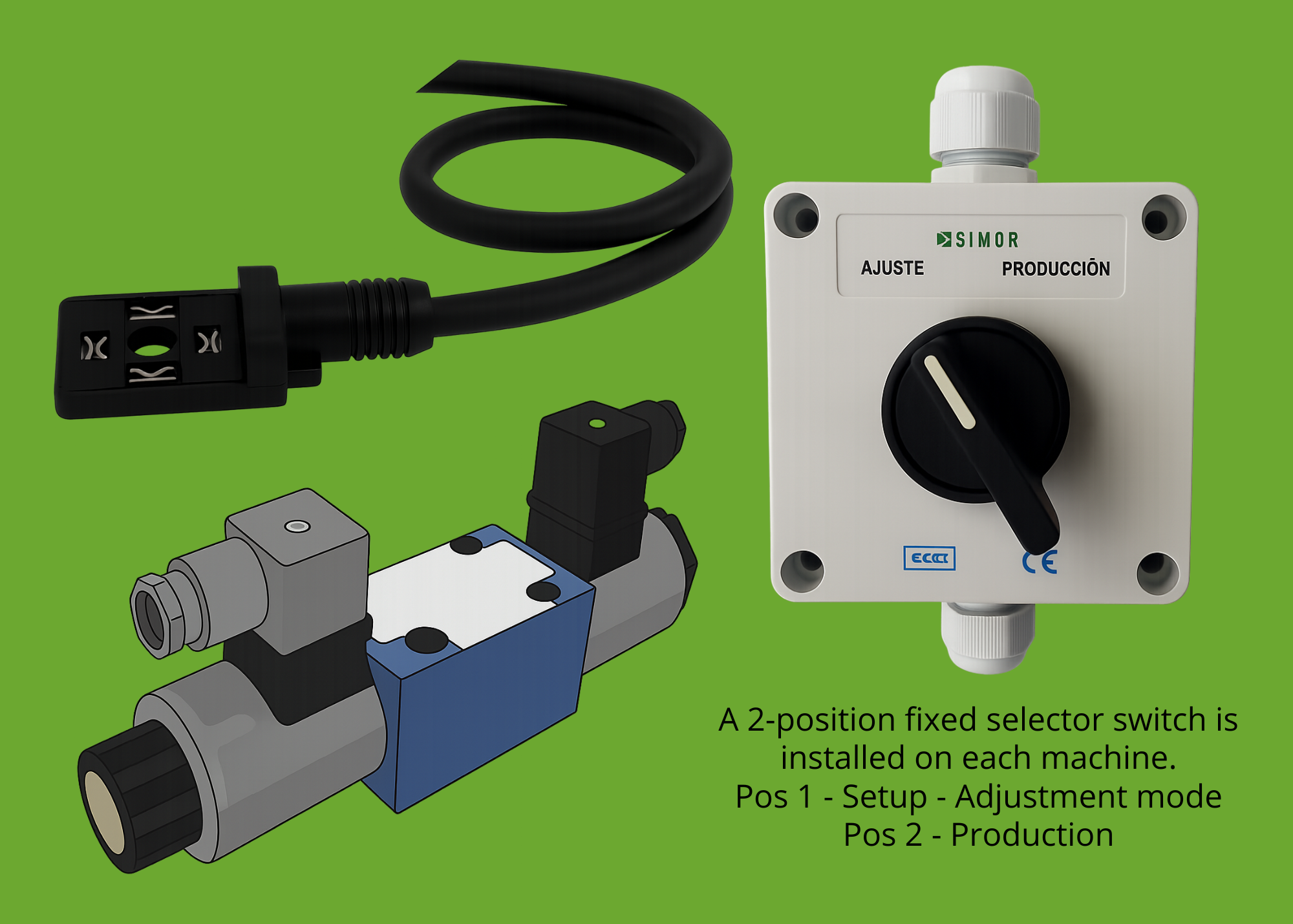

-Integration of 2 parallel DIN connectors: valve 1 (injection function) and valve 2 (charging function).

-Installation of a position selector switch: Setup/adjustment and production.

- Enables differentiation between actual production cycles and adjustment or startup cycles.

PC visualization: up to 64machines on screen.

Mobile visualization: by 8 machine module.
